Weld Neck Flange ASME B16.5

TYPE

Slip on flange,weld neck flange,blind,plate,lap joint flange,socket weld flange,thread flange etc.

SIZE

NPS1/2”-120”(DN15-3000)

THICKNESS

150#,300#,600#,900#,1500#,2500#, PN2.5,PN6,PN10, PN16, PN25, PN40, PN64

MATERIAL

ASME:  A105, A350 LF2, A694 F42,A694 F52,A694 F60,A694 F65,A694 F70,A182 F304L,F316L,F316Ti,F321,F347

DIN EN: C22.8, ST37.2, P245GH,P250GH，1.7380, 1.5414, 1.4306, 1.4404, 1.4571, 1.4462, 1.4410, 1.4507

GOST: Steel 20#,  09T2C, 15X5M, 08XH1810, 03XH1811, 08X17H13M2T, 03X17H13M2 , 12X18H10T ,10X17H13M2T etc

JIS: SS400,STB42, STBA22, STBA23 , STBA24 , STBA25 , STBA26, SUS304L , SUS316L , SUS321 etc.

STANDARD

ASME: ANSI B16.5,ANSI B16.47,ANSI B16.48,PI 605,MSS SP44,EN1092, AWWA C207-2007 etc.

DIN EN: EN1092-1,BS4504,DIN2573,DIN2576,DIN2631,DIN2632 ,DIN2633 ,DIN2634, DIN2527,DIN 2566,etc.

GOST: GOST 33259 / GOST 12820/ GOST 12821 /GOST 12822/ GOST 12836

JIS: JIS B2220

we can also produce as drawing by customers.

SURFACE

anti-rust oil, galvanizing, hot dip galvanized,black paint, yellow paint,PE coated.

INSPECTION

Chemical Elements, Mechanical Property, Heat Treatment, Ultrasonic Test, Penetration Test, Magnetic Powder Test, X-Ray Test, Hydraulic Pressure Test, Blasting Experiment,Metallographic Test, HIC /SSC,  we can make them as your request.

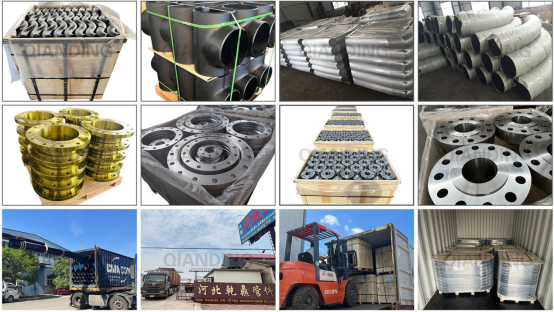

PACKING

plywood cases and pallets

TRADETERM

FOB, CNF&CFR, CIF

PAYMENT

T/T  L/C  D/P

BRAND

QIANDING

CERTIFICATE

ISO14001, ISO9001, ISO 45001, GOST, CE etc.

ORIGIN

CHINA

APPLICATION

Natural Gas, Petroleum Oil, Electric Power, Chemical Engineering, Ship Building, Water Disposal,  Garbage Disposal,installation and other

NOTE

We can produce customized products as requirements.

KEYWORD

Weld Neck flange, Slip On flange, Plate flange, Blind(BL), Loose flange, Threaded flange, Socket Weld flange(SW), carbon steel flange (CS flange), mild steel flange(MS flange), alloy steel flange(AS flange), stainless steel flange(SS flange)
